NVIDIA + Wayland on Arch: A Comprehensive Setup Guide

Unlock the secrets to a flawless NVIDIA and Wayland setup on Arch. Follow our step-by-step guide for a hassle-free desktop experience.

As you know, the transition to Wayland from the traditional Xorg server in the Linux ecosystem has been a hot topic that caused much controversy and, admittedly, a fair share of troubleshooting.

While Wayland promises a more streamlined and secure interface than its predecessor, Xorg, users have often encountered hurdles, particularly regarding compatibility with NVIDIA graphics cards.

In other words, the journey hasn’t always been without bumps, from rendering issues to compatibility quirks. However, it’s becoming increasingly clear that the NVIDIA and Wayland combo, while not yet a perfect match, is evolving into a viable, working solution for many.

Still, with the proper guidance and a bit of patience, using NVIDIA with Wayland on Arch is not just a possibility but a largely workable solution. You can approach this transition with confidence.

This guide is designed to do precisely this: usher you through the setup process and offer solutions to ensure you can take most of your NVIDIA and Wayland experience on Arch Linux. So, let’s get started.

Set Environment Variables

With NVIDIA’s introduction of GBM (Generic Buffer Management) support, a crucial component of the Linux graphics stack that provides an API for allocating buffers for graphics rendering and display, many compositors have adopted it as their default. So, to force GBM as a backend, we need to set some environment variables.

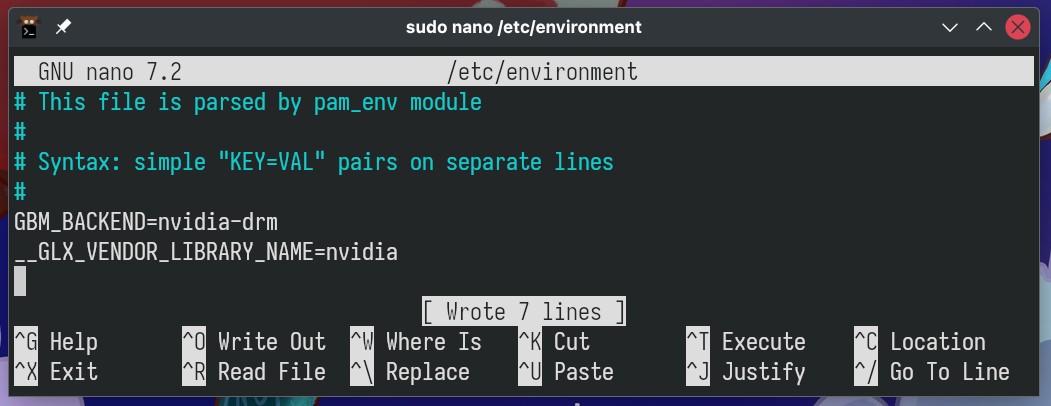

Open the “/etc/environment” file, paste the following two lines, then save the file and exit.

sudo nano /etc/environmentCode language: Bash (bash)
GBM_BACKEND=nvidia-drm
__GLX_VENDOR_LIBRARY_NAME=nvidiaCode language: Bash (bash)
Set environment variables.
Set environment variables.

Loading the NVIDIA Modules at System Boot

To ensure that the NVIDIA modules are loaded at the earliest possible stage, i.e., on the system boot, we need to add the ‘nvidia,’ ‘nvidia_modeset,’ ‘nvidia_uvm,’ and ‘nvidia_drm‘ modules to the initramfs – a temporary root file system loaded into memory as part of the boot process before the real root file system is mounted.

This is possible by entering them in the “MODULES” section of the “/etc/mkinitcpio.conf” file. This is a configuration file for mkinitcpio, a tool Arch uses to generate initial ramdisk images.

So, open the “/etc/mkinitcpio.conf” file:

sudo nano /etc/mkinitcpio.confCode language: Bash (bash)

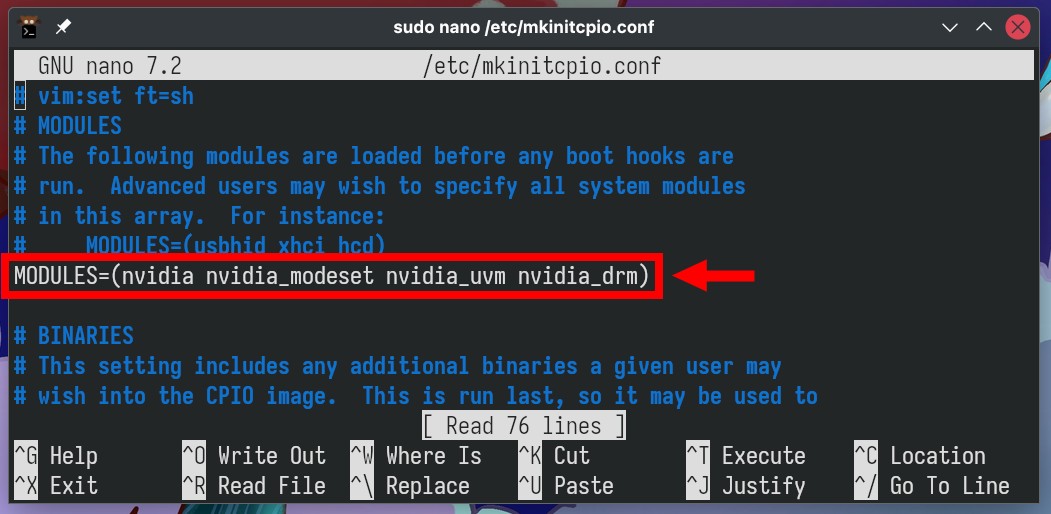

Then, enter the modules mentioned above, as the final version should look like this:

MODULES=(nvidia nvidia_modeset nvidia_uvm nvidia_drm)Code language: Bash (bash)
Loading the NVIDIA modules at system boot.
Loading the NVIDIA modules at system boot.

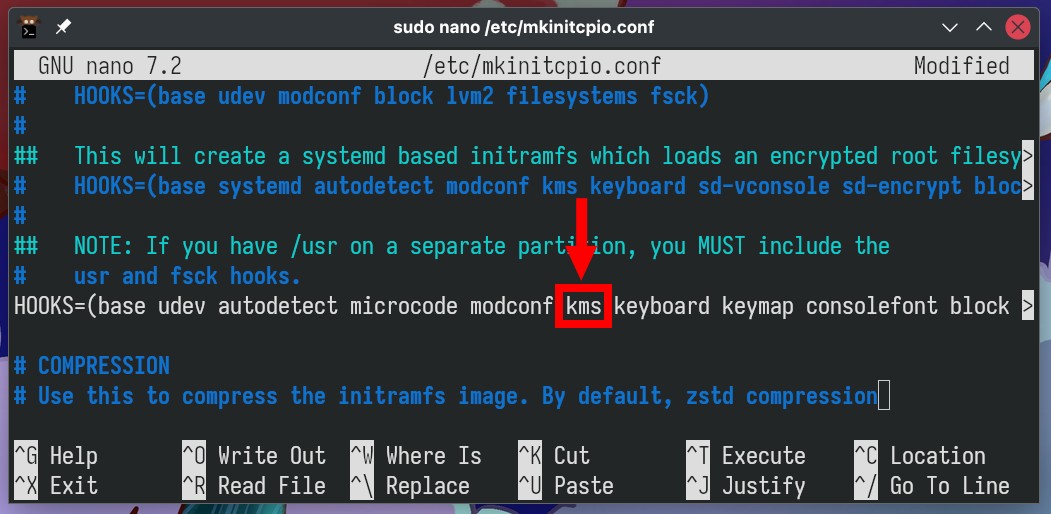

Great, but we’re not done with this file yet. Scroll down and remove the “kms” from the “HOOKS” section. This ensures that the initramfs will avoid including the open-source “nouveau” driver to mess with the work of the proprietary NVIDIA one we have installed and rely on.

Removing KMS from the Hooks.
Removing KMS from the Hooks.

We’ve finished modifying “/etc/mkinitcpio.conf“. Save your changes and close the file. Next, we’ll proceed to regenerate the initramfs. To do this, execute the following command:

sudo mkinitcpio -PCode language: Bash (bash)

In the command’s output, you might notice messages like “WARNING: Possibly missing firmware for module…” These shouldn’t cause concern and are unrelated to the modifications we are currently implementing.

Enable DRM

DRM (Direct Rendering Manager) is a subsystem of the Linux kernel responsible for interfacing with GPUs. It provides a framework for graphics drivers to enable direct access to the graphics hardware, which is crucial for performance in rendering tasks, 3D graphics, video playback, and more.

NVIDIA provides proprietary graphics drivers for Linux that use the DRM subsystem to interact with their GPUs. These drivers are essential for getting the best performance and feature support on NVIDIA hardware under Linux.

Enabling the DRM kernel mode setting is required for Wayland compositors to function properly. So, we will pass it as a parameter to the Linux kernel during its initial boot through the GRUB bootloader.

Open its configuration file:

sudo nano /etc/default/grubCode language: Bash (bash)

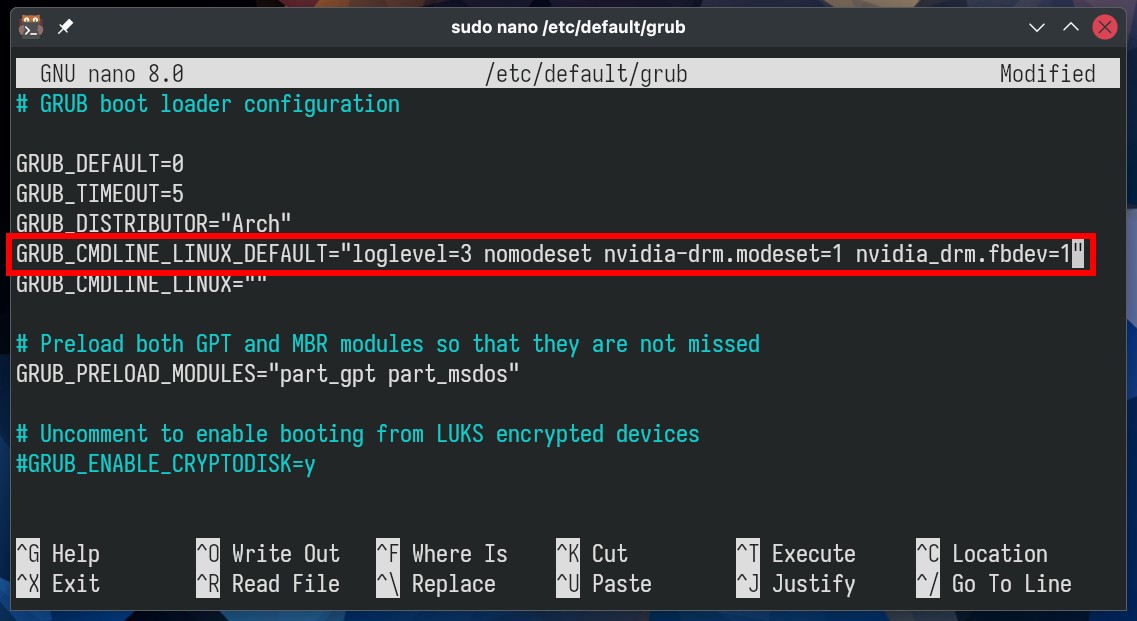

Locate the line that begins with “GRUB_CMDLINE_LINUX_DEFAULT” and append “nvidia-drm.modeset=1 nvidia_drm.fbdev=1” to its end. The completed line should resemble the example provided below.

GRUB_CMDLINE_LINUX_DEFAULT="loglevel=3 nomodeset nvidia-drm.modeset=1 nvidia_drm.fbdev=1"Code language: JavaScript (javascript)
Enabling DRM (Direct Rendering Manager) via GRUB.
Enabling DRM (Direct Rendering Manager) via GRUB.

Additionally, if you’re using the KDE Plasma desktop, it’s important to add “nvidia.NVreg_EnableGpuFirmware=0” to the settings mentioned above. This will help you have a much better and smoother experience with Plasma.

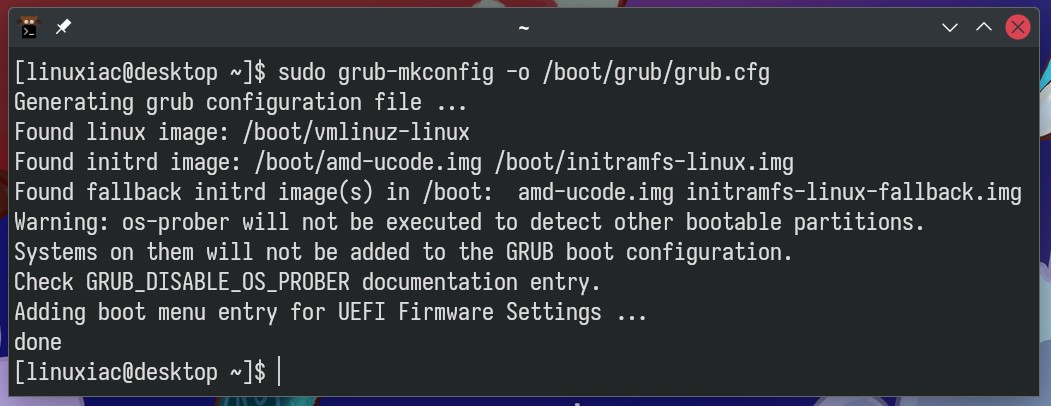

Finally, regenerate the GRUB configuration by running:

sudo grub-mkconfig -o /boot/grub/grub.cfgCode language: Bash (bash)
Regenerating the main GRUB configuration file.
Regenerating the main GRUB configuration file.

Testing Wayland with NVIDIA on Arch Linux

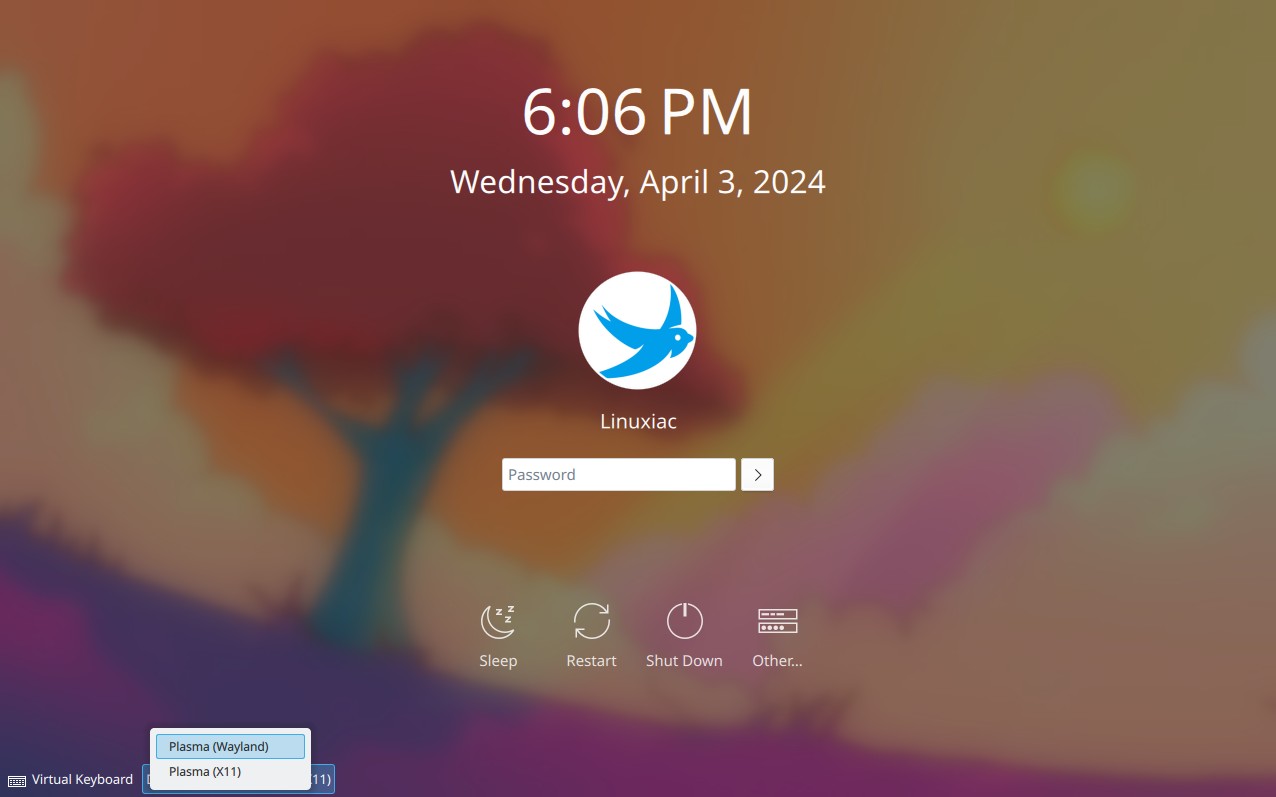

You are all set up. Now, reboot your Arch system. At the login screen of the display manager you’re using, choose the Wayland Session option.

Switching to Wayland session on Arch.
Switching to Wayland session on Arch.

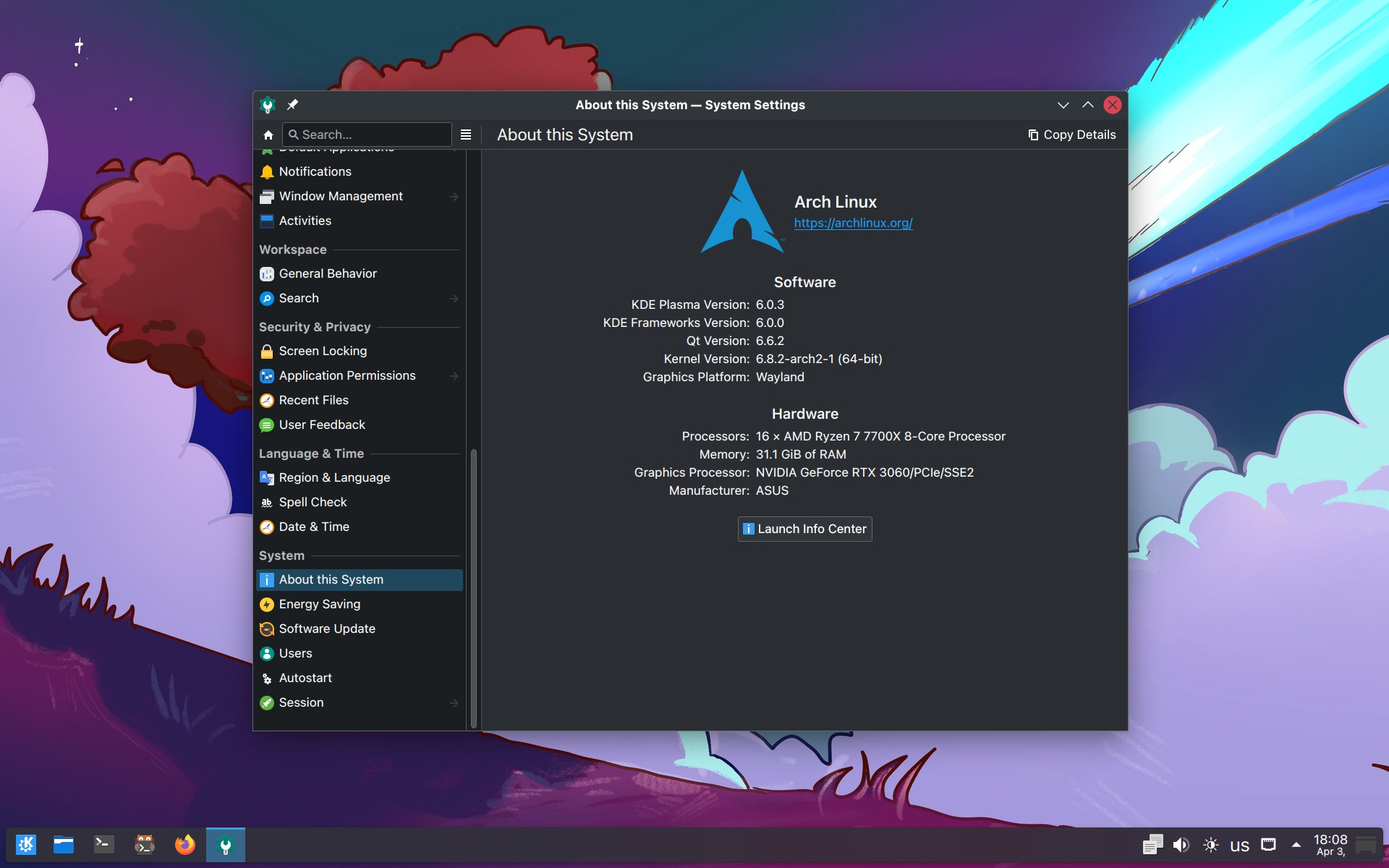

Log in and enjoy a seamless Wayland experience with NVIDIA and your beloved Arch Linux.

Arch Linux is running on Wayland with NVIDIA GPU.
Arch Linux is running on Wayland with NVIDIA GPU.

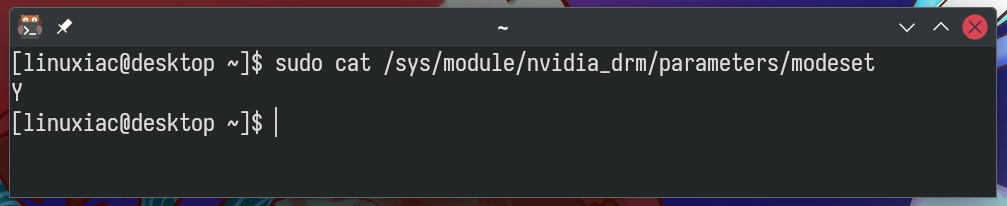

In addition, to verify that the NVIDIA DRM settings were correctly applied after a reboot, execute the following command; in response, you should get “Y.”

sudo cat /sys/module/nvidia_drm/parameters/modesetCode language: Bash (bash)
Verifying the NVIDIA DRM settings.
Verifying the NVIDIA DRM settings.

Bottom Line

In the end, it’s essential to clarify a key point. Our guide has confidently demonstrated that Wayland can operate smoothly with NVIDIA on an Arch system. This, however, does not extend to guaranteeing that every application, game, or desktop environment will also function flawlessly.

The compatibility of these components with Wayland varies and is dependent on the extent to which they have integrated support for it.

For example, desktop environments like KDE Plasma and GNOME offer very good support for Wayland, ensuring a seamless experience. On the other hand, environments like Cinnamon, with only basic Wayland support, may not deliver the same smoothness. So, it’s important to consider these differences.

Similarly, using the Hyprland dynamic tiling Wayland compositor would result in a smooth user experience, whereas others that are still dependent on Xorg may not offer the necessary support for Wayland. This variability in compatibility applies to individual applications too, so it’s important to be aware of potential issues when using specific software.

In conclusion, navigating the complexities of setting up Wayland on Arch can seem daunting, especially for those wielding the power of NVIDIA GPUs, who have historically faced hurdles ranging from rendering glitches to compatibility concerns.

Yet, with the proper knowledge, a dash of perseverance, and our guidance, the hurdles that once seemed impossible begin to shrink to the level that, with the correct setup, NVIDIA and Wayland can indeed create a synergy that brings out the best in your Arch setup.

Finally, we recommend referring to the specific Wayland and NVIDIA sections on the official Arch wiki for a more comprehensive understanding. They provide detailed information on setting up and troubleshooting Wayland and NVIDIA on Arch, making them valuable resources for further exploration.

And, of course, we’d love to hear your feedback or thoughts, so please don’t hesitate to share them in the comment box below.

Bobby Borisov

Bobby Borisov

Bobby, an editor-in-chief at Linuxiac, is a Linux professional with over 20 years of experience. With a strong focus on Linux and open-source software, he has worked as a Senior Linux System Administrator, Software Developer, and DevOps Engineer for small and large multinational companies.

21 Comments

  1. Florian Castellane

    note: nvidia-drm.fbdev=1 and nvidia-drm.modeset=1 are now default options, so they are not needed in cmdline anymore:
    https://gitlab.archlinux.org/archlinux/packaging/packages/nvidia-utils/-/commit/1b02daa2ccca6a69fa4355fb5a369c2115ec3e22

  2. Norbert

    Thank you; solved my issues

  3. Victorvwier

    thanks, excelent guide

  4. Sayedul Sayem

    Need to run this command after doing everything.
    sudo ln -s /dev/null /etc/udev/rules.d/61-gdm.rules

  5. Blackbird

    Thanks, nice tutorial

  6. Rui

    Thanks, excelent work

  7. Andre

    EndeavourOs (Arch) + Kde Plasma 6.1 => Before this changes every time I try to enter em full screen mode I got a black screen, now everything is work perfectly. Thanks!

  8. Sergij

    The "nvidia.NVreg_EnableGpuFirmware=0" really did the trick for me, even if I use Gnome! Now everything is so much smoother. Thank you! 😀

    1. Sergij

      Oh and also I use Fedora, so it works there too

  9. Riby

    The first part with /etc/environment can be removed, because it worked without this and then you set it, you can kill the sddm

  10. anonym

    thank you so much (btw this also works with nvidia-390xx drivers )

  11. nomodeset

    The grub nomodeset configuration is freezing my system after booting, it’s unnecessary in my opinion since it still works perfectly without it.

  12. hou

    “Hello, I want to ask, my laptop has an Intel+NVIDIA graphics card. After installation, it defaults to using the Intel graphics card. How can I use the NVIDIA graphics card and how to switch between them? It’s difficult to switch through Wayland.”

    1. Steve

      You will need `nvidia-prime` package then you can use it to switch read more here https://wiki.archlinux.org/title/PRIME . Keep in mind that laptops were never meant to default to dGPU keeping battery life consistent. Doing so is going against the norm. Hybrid is meant to make apps use dGPU only when required..

  13. Nick

    Hello, in the “Enable DRM” section, your instructions set “nvidia-drm.modeset=1” directly within the grub configuration, but the Arch wiki has instructions to do this using files with modprobe. Is there a particular reason this should be done in grub instead?

    1. Steve

      Agreed…

      Doing as guide here says is not recommended anymore. Doing it via modprobe is the better way to do it. Especially when you can add more options like fbdev=1 and doing it via Grub will only result in a lot of errors, I know I have tested it..

      Running those 2 commands should do the trick
      “`
      echo -e ‘options nvidia NVreg_UsePageAttributeTable=1 NVreg_InitializeSystemMemoryAllocations=0 NVreg_DynamicPowerManagement=0x02’ | sudo tee -a /etc/modprobe.d/nvidia.conf
      echo -e ‘options nvidia_drm modeset=1 fbdev=1’ | sudo tee -a /etc/modprobe.d/nvidia.conf
      “`

      P.S : Article needs an update to reflect that..

  14. M

    Is there a chance to update the guide for dracut?

  15. Anonymous

    Hello
    I have an error “missing module nvidia-uvm”

    1. Bobby Borisov

      Hi,

      Maybe this will help you:
      https://bbs.archlinux.org/viewtopic.php?id=271710

      Best,
      Bobby

  16. Fernando Henrique

    In the “Enable DRM” section, how do you proceed when you don’t use grub, but systemd-boot?

    1. Bobby Borisov

      Hi Fernando,

      You should do the following. Access the systemd-boot entries at “/boot/loader/entries/.” Edit the “.conf” file corresponding to the boot entry you wish to modify by adding the kernel parameter (“nvidia-drm.modeset=1”) to the “options” line to enable DRM. Save the file and exit. Finally, reboot your system to apply the changes.

      I hope I’ve been helpful.

      Best,
      Bobby
